LASE Amplifier Module Intended for Mackie Thump TH12/15 & TH12A/15A w/DSP (110V)
4.3 (141 items)
Limited Time Sale$137.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221445587 | Release Date | 2026/05/03 | List Price | $92.00 | Model Number | 221445587 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

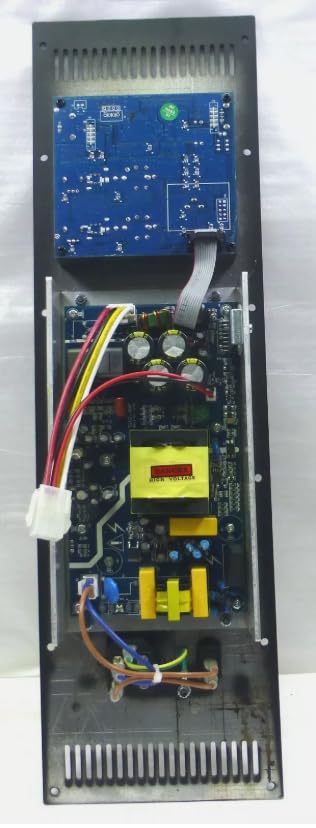

LASE Amplifer fot Mackie THUMP TH12/15 & TH12A/15A ! ( 8 Ω Only. ) for Mackie THUMP TH12/15 & TH12A/15A Powered Speaker Cabinet. Professional Bi-Amp Power-Amplifier Module With DSP Control. This will not work on the Mackie 1300 Thump 15A & 12A. PICS of Thump Models Are For Show Only ! Very Easy To Install. The New LASE RPL Mackie TH12/15 & TH12A/15A Compatible Replacement Professional Bi-Amp Power-Amplifier Module has a number of unique control features. (2) Two Individual Channel Inputs with Push Button mic/line level inputs. A Mix level XLR output ( Pre DSP). Master Control with DSP (digital signal processor) push button control. Works on 110V or 220V.
- Power Rated @ 8 Ω ONLY. Output Power : 20-20kHz, 1W with 1 khz Power Output RMS : 500 W RMS, 1000 W peak (overall) @ 8 Ω. 400 W RMS, 800 W peak (LF) 100 W RMS, 200 W peak (HF)
- Frequency Response(+o/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz Crossover Frequency : 1.7 Khz THD : 20 Hz - 20 kHz for 1 W <0.1% Signal-to-Noise Ratio : >112 dBA Channel separation : (Crosstalk) at 1 kHz >70 dB
- Input Connectors (per channel) : 3-pin XLR, 1/4" phono, electronically balanced. Output Connector (Mix Out) : 3-pin XLR, electronically balanced Class : D wiring Operating voltage : 110 V / 220 V nominal
- Dimensions : (L×W×D) : 18.4" x 5.43" x 2.55" (468mm x 138mm x 65mm). Packing dimension : 20.55" x 8.07" x 3.9" (522mm x 205mm x 100mm) Net weight :2.97lbs (1.35Kgm) Gross weight :4.4lbs(2Kgm)
| UPC | 810175750156 |
|---|---|
| Model | 110V |
| Brand Name | LASE |
| Part Number | EKX12P/15P |
| Manufacturer | LASE |
| Output Power | 500 Watts |
| Mounting Type | Internal Mount |
| Number of Channels | 2 |
| Included Components | Amplifer Module |
| Maximum Supply Voltage | 220 Volts |
| Minimum Supply Voltage | 110 Volts (AC) |
