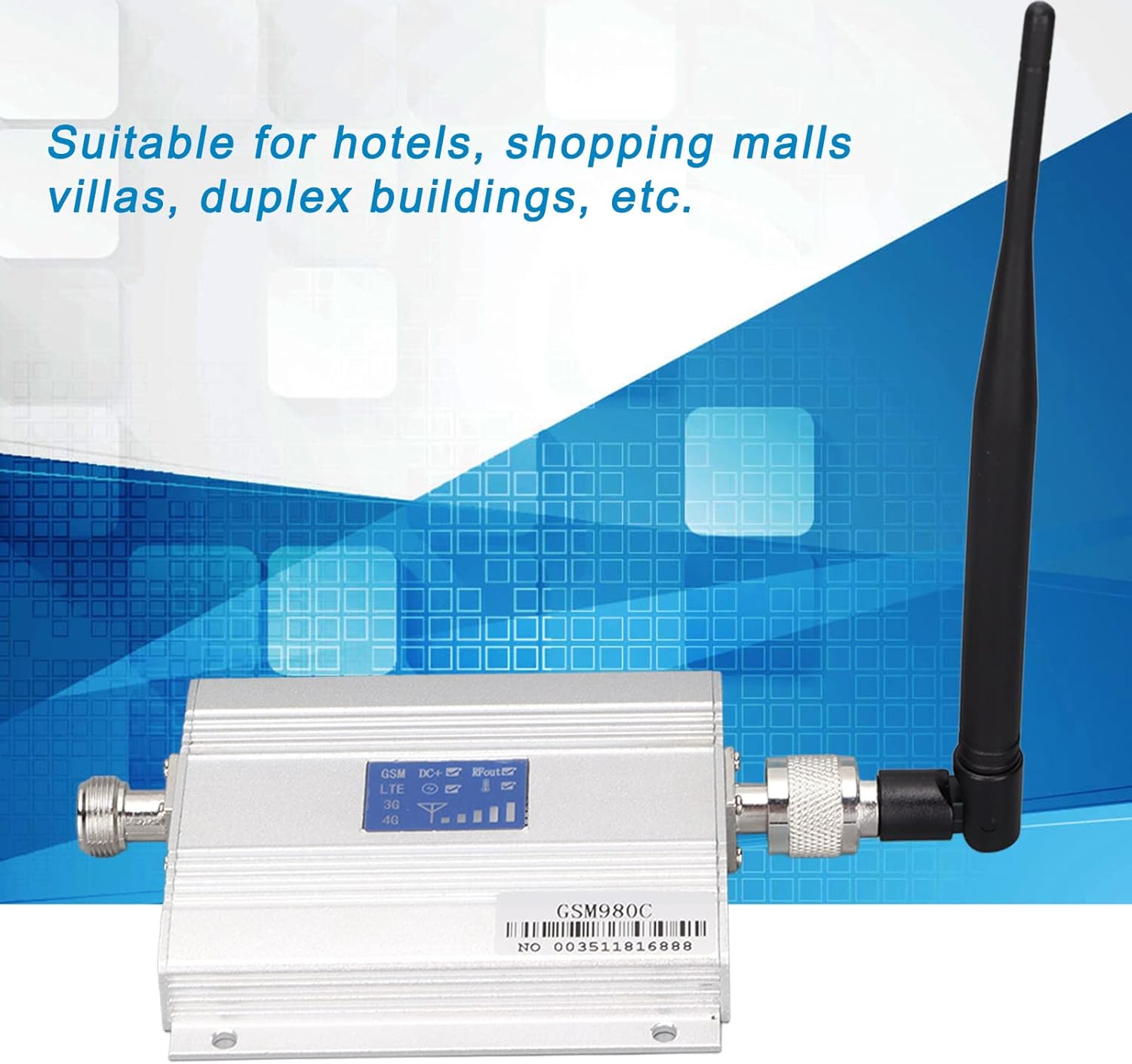

Cell Phone Booster, Mobile Phone Amplifier Repeater with 10m Suction Cup Antenna and Small Antenna, Covering Area up to 1076.39 16145.87 sq ft W CDMA2100 Boosts(US)

Specification: Item Type: Cell Phone Enhancer Material: Aluminum Working Frequency : Uplink: 890 915MHz Downlink: 935 960MHz Gain (dB): Uplink Gp≥55 Downlink Gp≥60 Output Power (Po): ≤21dBm±3dBm Flatness: ≤3dB Impedance: 50Ω/N Noise Figure: ≤4dB Connector Type: N female Delay: ≤0.5μs Ambient Temperature: 10℃～60℃ Working Voltage: AC110～240V 50～60Hz EMC EN 489 1 V1.9.2 EMC EN 489 8 V1.2.1 Function Instructions: a) Power indicator (Digital Display Bar) b) Output power indication (Digital Display Bar) Coverage Area 100 1500 meter (A large area requires multiple indoor antenna sets) How to deal with no effect after installation A. First confirm that there is a mobile phone at the outdoor antenna end, and reach ( 50dm or more, whether the indicator scale is full B. Make sure that the amplifier, antenna and other related accessories are selected correctly c. Confirm that all lines, distributors, antennas, and amplifiers are connected correctly After installation, the is improved, but no calls can be made A. Confirm that the outdoor antenna is aligned with the base station B. Confirm that the communication distance between the outdoor antenna and the base station is within 5 kilometers. C. Confirm that the line between the outdoor antenna and the amplifier is not more than 40 meters, not more than 20 meters is more appropriate, and not less than 10 Package List: 1 x Host 1 x 10m Suction Cup Antenna 1 x Suction Cup Small Antenna 1 x Pen Antenna 1 x Instruction 1 x Power Adapter

• Metal Aluminum Material: Stable and in performance. Pure aluminum material makes the radiation close to 0.
• Wide Coverage: amplifier has smart chips, greatly increase the and comprehensive and multi directional penetrating power.
• Easy Installation: Outdoor installation in an open palce with good and stable , keep a long distance from the indoor host.
• Multi Frequency: Different frequencies for different countries, using automatic gain control, covering an area of 100‑1500 meters.
• Wide Use: Smart phone amplifier is suitable for home, hotels, shopping malls, villas, large scale houses, etc.
