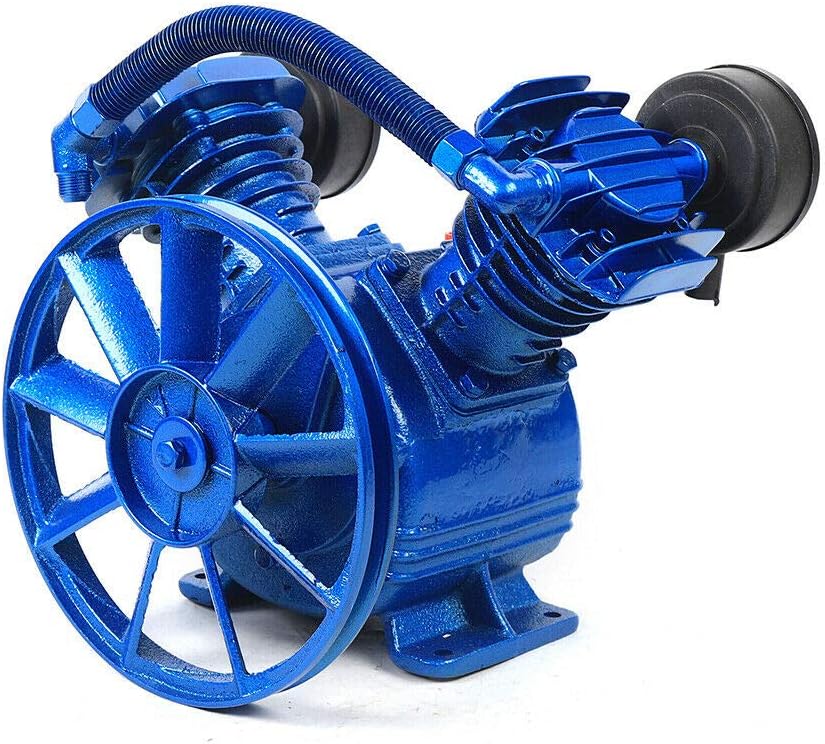

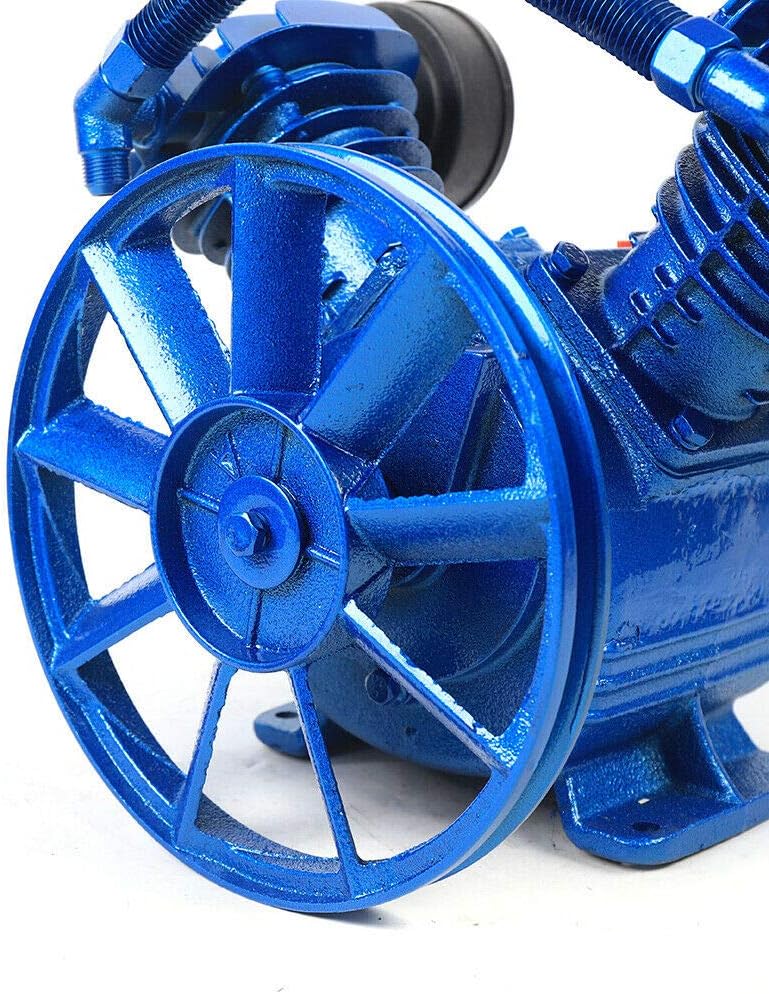

3HP 2200W Air Compressor Pump head V Type Twin Cylinder Air Compressor Pum 1050 RPM 250L/min (8.8cfm) Single Stage Replacement Air Compressor

Specifications:Power: 2200W, 3HPCylinder: 65 * 2Exhaust capacity: 250L / min (8.8cfm)Discharge pressure: 8 bar (115 PSI)Speed: 1050rpmWeight: 37.5 lbsApplication of air compressor: factory, home decoration, auto repair, painting, etcInstallation notes:1. When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration.2. Tighten the screws (including the base and pulley screws).3. After the screws are installed, the belt shall be tightened. If the belt is loose, please move the motor. After the screws are tightened, reinstall the belt.4. The new machine must be filled with engine oil before starting, and the engine oil shall be added to the center of the red point of the oil mirror.5. The rotation direction of the pump head is clockwise. If it reverses, please adjust it in time.6. Change the oil for the first half month, the second one and a half months, and the next two to three months.7. Replace the air filter regularly. Under normal conditions, it must be replaced in two to three months, and in case of poor environment, it must be replaced in one month.8. The operation of the machine will produce high temperature, be careful not to burn!Packing list:1 x Air Compressor Pump head

• DURABLE AND EFFICIENT - The pump head of this air compressor is made of high-quality materials and is not easily damaged. High efficiency, high precision, versatility, low energy consumption.
• STABLE SUPPORT AND HIGH TEMPERATURE RESISTANCE - Strictly balanced support and correction to ensure the smooth operation of the host. The hair piece is made of special valve steel, which has good strength and toughness at high temperatures.
• HIGH PERFORMANCE - faster inflation and low noise. Powerful cooling blades, good cooling performance. The vibration is small, the noise is low, and the heat dissipation is strong.
• WIDE RANGE OF APPLICATIONS -This air compressor is widely used in industries that require high-quality compressed air, such as chemicals, light industry, textiles, food processing, sanitation, electronics, machinery, mining, construction, and scientific research.
• SPECIFICATIONS - Power: 2200W, 3HP Cylinder: 65 * 2 Exhaust capacity: 250L / min (8.8cfm) Discharge pressure: 8 bar(115 PSI） Speed: 1050rpm Weight: 37.5 lbs
